橡膠LCD導電條.連接器 |
|
| |
|
|
| |
|
|
|
|
|
Item |
|
Unit |
0.05P |
0.10P |
0.18P |
0.25P |
|
Pitch |
P |
mm |
0.05±0.03 |
0.1±0.04 |
0.18±0.05 |
0.25±0.05 |
|
Length |
L |
mm |
|
1.0∼10(±0.1) |
10.1∼30(±0.2) |
30.1∼60(±0.3) |
|
60.1∼120(±0.4) |
120.1∼180(±0.6) |
over 180(±0.8) |
|
|
Height |
H |
mm |
0.5∼5(±0.1)
5.1∼10 (±0.15) |
|
Width |
W |
mm |
±0.1 |
|
Conductor width |
Pc |
mm |
0.03±0.01 |
0.05±0.015 |
0.1±0.03 |
0.1±0.03 |
|
Insulator width |
Pi |
mm |
0.02mm |
0.05mm |
0.08mm |
0.08mm |
|
Standard |
W' |
mm |
0.4±0.1 |
|
|
| |
|
L TYPE |
|
|
| |
|
Physical Properties
|
|
|
|
|
|
Item
|
Units
|
Insulator |
Conductor |
|
|
Volume Resistivity |
Ωcm |
1×1014 |
3~6 |
|
|
Dielectric breakdown Voltage
|
KV/mm |
23~27 |
|
|
|
Specific Gravity |
|
1.20 |
1.25
|
|
|
Hardness (Shore A) |
(JIS．A) |
55±5 |
65±5 |
|
|
Tensile Strength |
kg/cm2 |
70~85 |
50~60 |
|
|
Elongation |
% |
180~250 |
150~200 |
|
|
Temperature Range |
℃ |
-20~100 |
-20~100
|
|
|
Rated Current Density
(25℃) |
mA/mm2
|
|
1 |
|
|
|
| |
|
LS
TYPE |
|
|
| |
|
Physical Properties
|
|
|
|
|
|
Item
|
Units
|
Insulator |
Conductor |
Side
Insulator |
|
Volume Resistivity |
Ωcm |
1×1014 |
3~6 |
1×1011 |
|
Dielectric breakdown Voltage
|
KV/mm |
23~27 |
|
23~27 |
|
Specific Gravity |
|
1.20 |
1.25
|
1.16 |
|
Hardness (Shore A) |
(JIS．A) |
55±5 |
65±5 |
30±5 |
|
Tensile Strength |
kg/cm2 |
70~85 |
50~60 |
30~40 |
|
Elongation |
% |
180~250 |
150~200 |
250~350 |
|
Temperature Range |
℃ |
-20~100 |
-20~100
|
-20~100 |
|
Rated Current Density
(25℃) |
mA/mm2
|
|
1 |
|
|
|
| |
|
LG
TYPE |
|
|
| |
|
Physical Properties
|
|
|
|
|
|
Item
|
Units
|
Insulator |
Conductor |
Side
Insulator |
|
Volume Resistivity |
Ωcm |
1×1014 |
3~6 |
8×1013 |
|
Dielectric breakdown Voltage
|
KV/mm |
23~27 |
|
2.0~2.5 |
|
Specific Gravity |
|
1.20 |
1.25
|
1.10 |
|
Hardness (Shore A) |
(JIS．A) |
55±5 |
65±5 |
20±5 |
|
Tensile Strength |
kg/cm2 |
70~85 |
50~60 |
8~12 |
|
Elongation |
% |
180~250 |
150~200 |
250~350 |
|
Temperature Range |
℃ |
-20~100 |
-20~100
|
-20~100 |
|
Rated Current Density
(25℃) |
mA/mm2
|
|
1 |
|
|
|
| |
| |
|

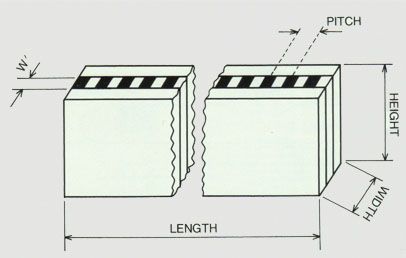

Design Guide |
|
|
| |
|
*Length : LCD
size × (1±0.01) |
|
*Height : The
distance between LCD and PCB × (1+x) |
| |
|
|
|
|
|
|
L |
LI
|
LS
|
LG
|
|
X |
0.01-0.10 |
0.07-0.10 |
0.10-0.15 |
0.10-0.15 |
|
|
|
|
|
|
|
*Width : The
gap of housing × 0.95 |
|
|
*W' : Width ×
0.25 |
|
*Pitch :
Typical Application
*Standard LCD : 0.18-0.25 Pitch
*Dot matrix LCD : 0.05-0.1 Pitch |
